Textile Testing Instruments

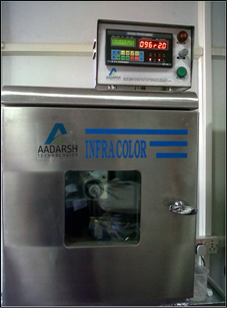

Infra Red Lab dyeing Machine
An ideal laboratory dyeing machine using Infra Red Rays as heating source. It is environment & user
friendly machine as there are no fumes, no smoke & no pollution. Heating is uniform & temperature
sensing is accurate. Beakers are provided with dosing facility. Dyeing results are authentic & reproducible.
Suitable for dyeing of fabric, fibres & yarn of all types.
Salient Features:-
» Due to use of Infra Red Radiations for heating, beaker heating is uniform.
» There is enough savings in energy consumption
» As there is no contamination of beakers with glycerine, cleaning time is drastically reduced thus more dyeing cycles are possible.
» Sensing of temperature is directly of the liquor inside the beaker hence dyeing results are more authentic
» Injection Dosing System is provided to make time to time additions to the dye liquor without opening beaker caps.
» Beakers are specially micro finished from inside as well as outside.
» Beaker carriage wheel is designed to adapt beakers of different capacities
» Automation is through Micro Processor Controller. Safety norms are provided.
» Models available are: 16x100ml, 12x250ml, 6x500 ml. & 4x1000ml.
Complete Tank, All side panels & Beaker carriage is made from SS-304
All beakers are made from SS-316
IR Heaters of total capacity 3.0 KW
PLC Controlled programmer with 99 programmes.
Variable Drive for Speed controller

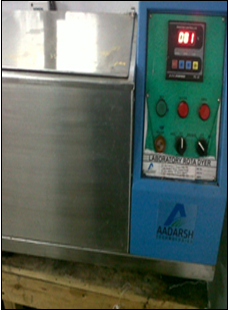

Rota Dyer
Salient Features:-
» Machine with 14 dye pots x 250ml SS Beakers
» Carriage rotation at 25 RPM speed
» PC-07 controller with LCD display displaying at a glance gradient hold time & temperature with service free controller
» Machine tank, beaker stand, carriage is of SS 304 .
» Beakers are of SS 316 with electro polish

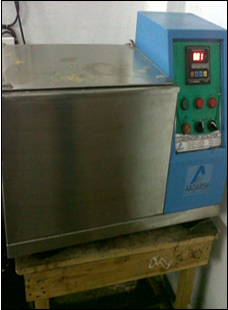

GBBD
Salient Features:-
» 14 dye pots of 250ml Capacity with provision of cooling
» Forward & reverse carriage rotation in 360 degree at 25 RPM speed
» DP-01 controller having 50 program memory, each program having 15 steps & LCD displaying, gradient, hold time & temperature with service free controller
» Beaker carriage, machine tank & beaker stand of SS 304
» Beaker of SS 316 with electro polish
» Beakers are gun metal type

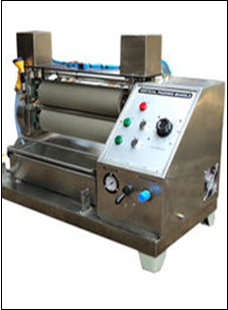

LAB DIGITAL SPEED PADDING MANGLE
Salient Features:-
» Versatile machine can be used for dyeing, printing and finishing trials
» Working width: optional of 300mm, 450mm, 600mm,1000mm,1250mm and 1850mm.
» Automation through Microprocessor Controller (optional).
» For even pressure throughout, pneumatic loading of the bowl
» Small unheated trough provided for padding a small size samples
» Nip padding trough available as standard accessories.
» Compensator for use in conjunction with Drying Curing and setting Chamber available as option
» 3 bowl padding mangle with central bowl of ebonite or stainless steel can also be offered.
» The Speed of machine will be displayed on the control panel digitally.
Technical Specifications
1 Working width : 300mm, 450mm, 600mm
2 Material of coating on bowl : synthetic rubber
3 Rubber hardness : 65 to 70 shore hardness
4 Cloth speed : up to 10 meter / minute.
5 Dimensions Approx : L 1030 mmxW650 mmxH790 mm,
6 Electrical Supply : 230V, single phase, 50Hz

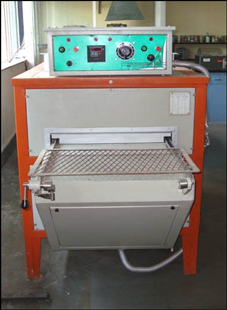

Stenter (Drying Curing Setting Chamber)
Salient Features:-
» For drying, curing and thermo fixation of samples.
» Working width of 300mm, 450mm, and 600mm
» Speed control for variable dwell time of 30 seconds to 5 minutes.
» Internal heater provided for pre heating
» Electrical heating for temperature up to 250oC
» Heating zone length: 800mm
» Can be used either for small sizes of samples or for continuous fabric length.
» 3 bowl padding mangle with central bowl of ebonite or stainless steel can also be offered.
» Can be synchronized with Laboratory Vertical Padding Mangle for continuous padding, drying and curing/setting process
Technical Specifications
1 Working width : 300mm, 450mm, 600mm
2 Speed control : Variable
3 Dwell time : 30 seconds to 5 minutes
4 Electrical Heating for Temperature Up : To 250oC
5 Heating zone length : 800mm
6 Dimensions Approx : L 2450mmxW1100mmxH1200mm
6 Electrical Supply : 12kw , 415V Three phase, 50Hz
Colour Matching Cabinet
Salient Features:-
» MS Body duly powder coated
» Completely Foldable
» Internal color is neutral grey (Munsell N7)
» All Imported Lamps supplied with acrylic diffuser to remove the shadow effect.Eight different illuminants
» Suitable for Euro-American buyers.
Lamp Compliments:
Day light D65 with hour meter – 1 Nos./Simulated Sunlight/D-50/Cool Day Light/TL 84/CWF/UV Lamp Large/Illuminant "A" (Incandescent)
Optional Lamps: - UL-30/UL-35
